CUPHOLDER, Removing And Installing: Removing

-- Remove the center console (refer to CENTER CONSOLE, REMOVING AND INSTALLING ) and place it on a soft surface.

-- Remove the center console upper section (refer to CENTER CONSOLE UPPER SECTION, REMOVING AND INSTALLING ) and place it on a soft surface.

-- Equipped on some models: remove the connectors -2- for the cupholder ambient lighting lamp.

Courtesy of AUDI OF AMERICA, LLC

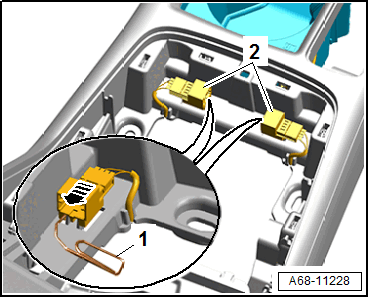

-- To do so push a small paper clip -1- between the connector and connector mount.

-- Release the catch with a paper clip and disengage the connector -arrow-.

-- Free up the wires for the cupholder ambient lighting -1-.

Courtesy of AUDI OF AMERICA, LLC

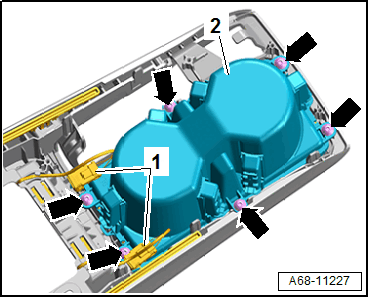

-- Remove the bolts -arrows-.

-- Remove the cupholder -2-.
