OVERVIEW - Front Roof Module -WX3-

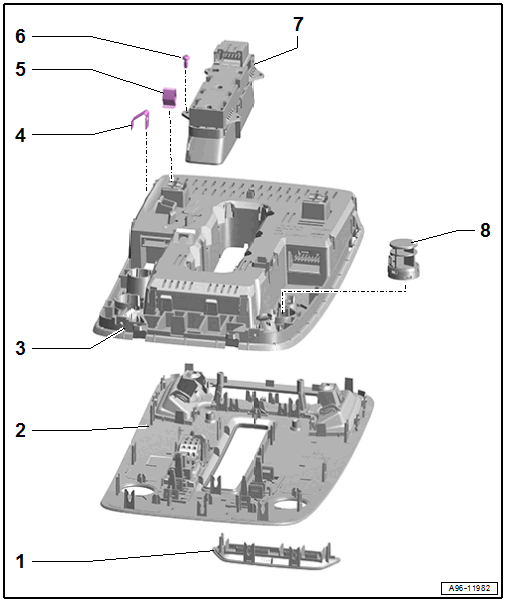

Fig 1: Exploded View Of Front Roof Module -WX3-

Courtesy of AUDI OF AMERICA, LLC

Trim
- For the Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Removing and installing. Refer to TRIM FOR Front Passenger Airbag -Disabled- Indicator Lamp -K145-, REMOVING AND INSTALLING .
Interior Lamp Frame
- Removing and installing. Refer to INTERIOR LAMP FRAME, REMOVING AND INSTALLING .
Front Roof Module -WX3-
- With Roof Electronics Control Module -J528-
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Disassembling and Assembling. Refer to FRONT INTERIOR LAMP/READING LAMP, DISASSEMBLING AND ASSEMBLING .
Spring
- Quantity: 2
Clip
- Quantity: 2
Bolt
- 0.65 Nm
- Quantity: 4
Sunroof Button -E325- with Roof Shade Button 1 -E584-
- Removing and installing. Refer to Sunroof Button -E325-, REMOVING AND INSTALLING .
Trim
