Component Location Overview - Telephone System, MIB 3

Courtesy of AUDI OF AMERICA, LLC

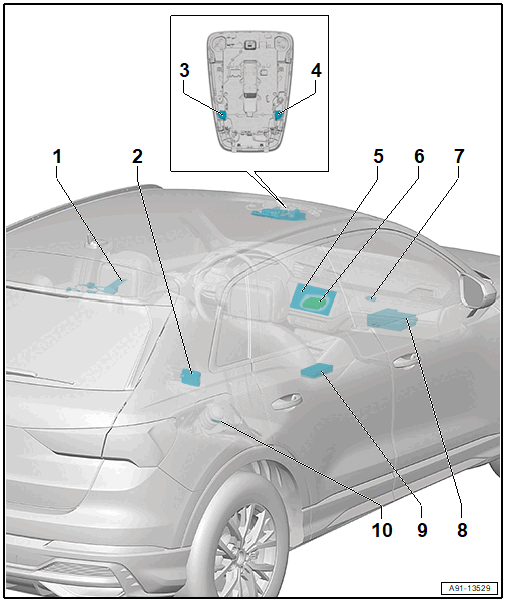

1. LTE Antenna 3 -R330-
   • Removing and Installing. Refer to LTE Antenna 3 -R330-, REMOVING AND INSTALLING .
2. Cellular Telephone Amplifier -R86-
   • In the right side of the luggage compartment above the wheel housing
   • Q3 removing and installing; Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, Q3 .
   • Removing and Installing; Q3 Sportback. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, Q3 SPORTBACK .
3. Left Front Microphone -R140-
   • Removing and Installing. Refer to FRONT MICROPHONE, REMOVING AND INSTALLING .
4. Right Front Microphone -R141-
   • Removing and Installing. Refer to FRONT MICROPHONE, REMOVING AND INSTALLING .
5. Front Information Display Control Head -J685-
   • Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
6. Control Module for Emergency Call Module and Communication Unit -J949-
   • Behind the A/C controls in the center instrument panel
   • Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
7. Vehicle Interior Communication Antenna -R364-
   • In the instrument panel above the glove compartment
   • Removing and Installing. Refer to Vehicle Interior Communication Antenna -R364-, REMOVING AND INSTALLING, MIB 3 .
8. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
9. Mobile Device Charger 1 -J1146-
   • In the front center console storage compartment
   • Removing and Installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
10. Vehicle Interior Communication Antenna 2 -R365-
    • In the rear center console
    • Removing and Installing. Refer to Vehicle Interior Communication Antenna 2 -R365-, REMOVING AND INSTALLING .
