Overview - Horn

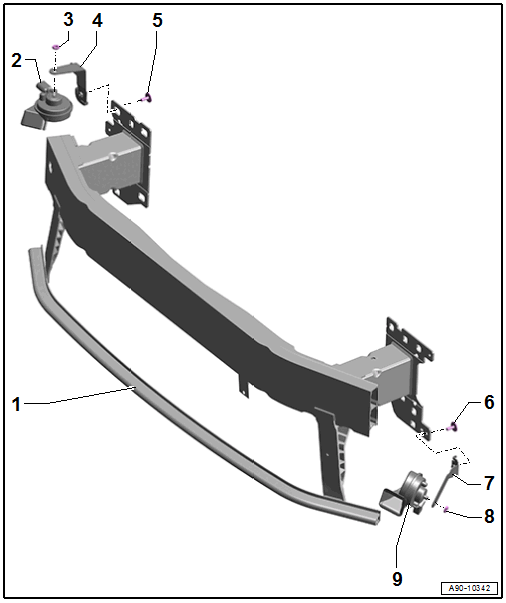

Fig 1: Exploded View Of Horn

Courtesy of AUDI OF AMERICA, LLC

Impact Member
Low Tone Horn -H7-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Nut
- 11 Nm
Bracket
- For the right horn
- Removing and installing. Refer to HORN BRACKET, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Bolt
- 8 Nm
Bracket
- For the left horn
- Removing and installing. Refer to HORN BRACKET, REMOVING AND INSTALLING .
Nut
- 11 Nm
High Tone Horn -H2-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
