Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

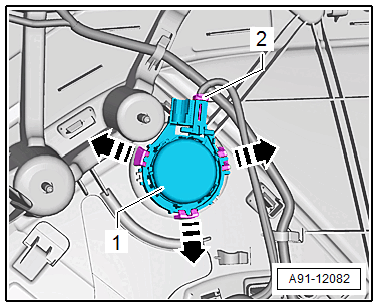

-- Release and disconnect the connector -2- from the Left Rear Treble Speaker -R14- -1-.

GWWA91-12082Courtesy of AUDI OF AMERICA, LLC

-- Press the tabs in the direction of -arrow- until the Left Rear Treble Speaker -R14- -1- can be removed from the door trim panel.
