Overview - Telephone, BLUETOOTH Hands-Free Calling (9ZX), MIB 3

The Information Electronics Control Module 1 -J794- is installed and is used for hands-free calling.

The connection to the Cellular Telephone -R54- takes place via the Vehicle Interior Communication Antenna -R364- /Vehicle Interior Communication Antenna 2 -R365-.

It can be operated using the Infotainment system or the Cellular Telephone -R54-.

The Left Front Microphone -R140- and the Right Front Microphone -R141- are installed in the Front Roof Module -WX3-. The microphone is connected with the Control Module for Emergency Call Module and Communication Unit -J949-.

9ZX - Bluetooth Hands-Free Calling

Courtesy of AUDI OF AMERICA, LLC

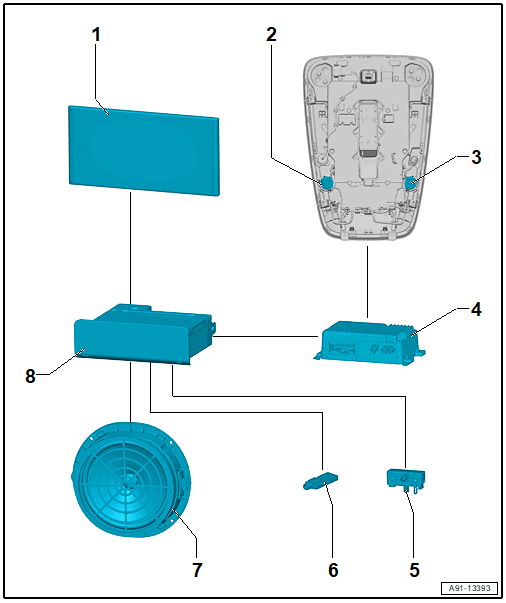

1. Front Information Display Control Head -J685-, Display in Center of the Instrument Panel
2. Left Front Microphone -R140-
3. Right Front Microphone -R141-
4. The Control Module for Emergency Call Module and Communication Unit - J949- is Located Behind the A/C Controls in the Center Instrument Panel.
5. Vehicle Interior Communication Antenna -R364- in Instrument Panel Above the Glove Compartment
6. Vehicle Interior Communication Antenna 2 -R365- in the Rear Center Console
7. Sound Systems
8. Information Electronics Control Module 1 -J794- in the Glove Compartment

Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS, MIB 3 .

Notes on Bluetooth Technology

A standardized radio connection is used for data transfer between the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- - Bluetooth Technology. The range of the radio connection is approximately 10 m (32.8 feet).
