Overview - Telephone, AUDI Phone Box Light (9ZV), MIB 2+

The Information Electronics Control Module 1 -J794- is installed and is used for hands-free calling.

It can be operated using the Infotainment system or the Cellular Telephone -R54-.

The connection to the Cellular Telephone -R54- takes place via Bluetooth. The Bluetooth Antenna -R152- is integrated in the Information Electronics Control Module 1 -J794-.

The Mobile Device Charger 1 -J1146- (Audi phone box light) is installed in the front center console storage compartment. The Mobile Device Charger 1 -J1146- is only equipped with a module for wireless charging of the corresponding Cellular Telephone -R54-.

An LTE module can also be installed in the Information Electronics Control Module 1 -J794- for an Internet connection (Audi connect, EL3/SL5).

9ZV - Audi Phone Box Light

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head -J685- in Center of the Instrument Panel
2. Telephone Microphone -R38- in the Front Roof Module -WX3-
3. Information Electronics Control Module 1 -J794- with Bluetooth Antenna -R152- in the Glove Compartment
4. USB Distributor -R293- in the Front Center Console Storage Compartment
5. Mobile Device Charger 1 -J1146- in the Front Center Console Storage Compartment
6. Sound Systems
7. Instrument Cluster Control Module -J285-

Antennas

9ZV - Audi phone box light without Audi connect EL0:

• There are no antennas installed.

9ZV - Audi phone box light with Audi connect EL3/EL5:

• No antenna is installed for the telephone function.
• The LTE Antenna 1 -R297- /LTE Antenna 2 -R306- is installed for data transmission.

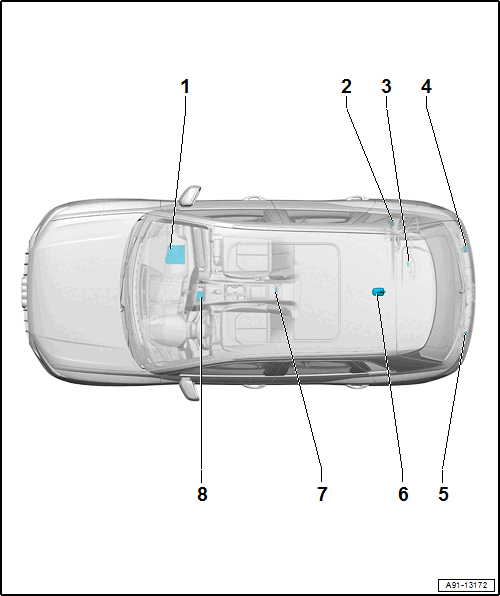

Overview Antennas

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
2. Not Installed
3. LTE Antenna 1 -R297-
   • In the spoiler
   • EL3/EL5 and NZ2/NZ3/NZ4
4. Not Installed
5. LTE Antenna 2 -R306-
   • EL3/EL5
6. LTE Antenna 1 -R297-
   • In the Roof Antenna -R216-
   • EL3/EL5 and NZ0
7. Vehicle Interior Communication Antenna -R364-
8. Mobile Device Charger 1 -J1146-

• EL0 - without Audi connect online service
• EL3/EL5 - with Audi connect online service
• NZ0 - without Emergency Call System
• NZ2 - eCall
• NZ3 - ERA Glonass
• NZ4 - private Emergency Call

Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .

Notes on Bluetooth technology

A standardized radio connection is used for data transfer between the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- - Bluetooth Technology. The range of the radio connection is approximately 10 m (32.8 feet).
