Overview - Telephone, AUDI Phone Box (9ZE), MIB 3
The Information Electronics Control Module 1 -J794- is installed and is used for hands-free calling.
The connection to the Cellular Telephone -R54- takes place via the Vehicle Interior Communication Antennas Vehicle Interior Communication Antenna -R364- /Vehicle Interior Communication Antenna 2 -R365-.
It can be operated using the Infotainment system or the Cellular Telephone -R54-.
The Left Front Microphone -R140- and the Right Front Microphone -R141- are installed in the Front Roof Module -WX3-. The microphone is connected with the Control Module for Emergency Call Module and Communication Unit -J949-.
The Mobile Device Charger 1 -J1146- (Audi phone box) is installed with a pairing antenna in the front center console storage compartment. The Mobile Device Charger 1 -J1146- is also equipped with a module for wireless charging of the corresponding Cellular Telephone -R54-.
The LTE Antenna 3 -R330- is connected to the Mobile Device Charger 1 -J1146- via the Cellular Telephone Amplifier -R86-.

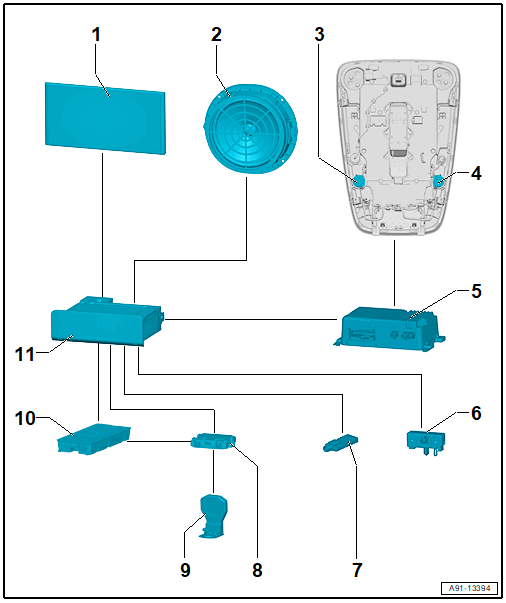

9ZE - Audi Phone Box
- Front Information Display Control Head -J685-, Display in Center of the Instrument Panel
- Sound Systems
- Left Front Microphone -R140-
- Right Front Microphone -R141-
- The Control Module for Emergency Call Module and Communication Unit - J949- is Located Behind the A/C Controls in the Center Instrument Panel.
- Vehicle Interior Communication Antenna -R364- in Instrument Panel Above the Glove Compartment
- Vehicle Interior Communication Antenna 2 -R365- in the Rear Center Console
- Cellular Telephone Amplifier -R86- in the Luggage Compartment on the Right Side
- LTE Antenna 3 -R330- in Spoiler
- Mobile Device Charger 1 -J1146- in the Front Center Console Storage Compartment
- Information Electronics Control Module 1 -J794- in the Glove Compartment
Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS, MIB 3 .
Notes on Bluetooth technology
A standardized radio connection is used for data transfer between the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- - Bluetooth Technology. The range of the radio connection is approximately 10 m (32.8 feet).
