Overview - Mobile Online Services, NZ2/NZ3/NZ4, From My 2020

The mobile online services are based on the Control Module for Emergency Call Module and Communication Unit -J949-.

The Control Module for Emergency Call Module and Communication Unit -J949- is safeguarded against a crash by being installed behind the A/C controls. The Control Module for Emergency Call Module and Communication Unit -J949- contains an emergency call module and a compass module. A separate SIM card for the emergency call function is installed.

Courtesy of AUDI OF AMERICA, LLC

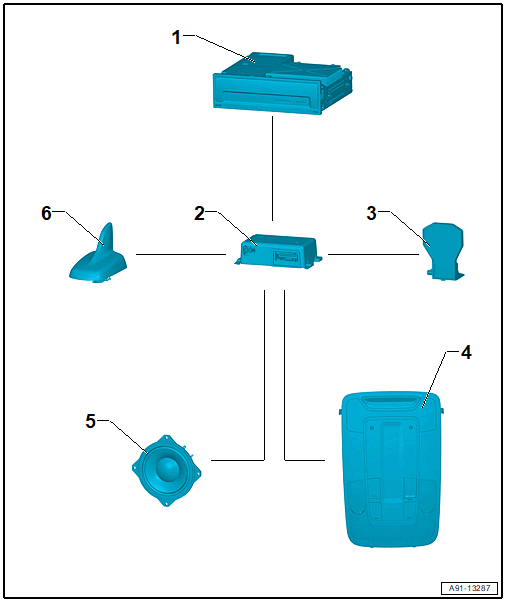

1. Information Electronics Control Module 1 -J794- in the Glove Compartment
2. Control Module for Emergency Call Module and Communication Unit -J949- behind the A/C controls
   • Telematics Emergency Battery - A16- installed in the Control Module for Emergency Call Module and Communication Unit -J949-
3. Emergency Call Module Antenna 2 -R322-
   • Under the rear bumper cover on the right side
   • Vehicles without China equipment with NZ2/NZ4
4. Left Front Microphone -R140- /Right Front Microphone -R141-, in the Front Roof Module -WX3-.
   • Vehicles without China equipment and NZ2/NZ4

     - Emergency Call Module Microphone -R321- in the Front Roof Module -WX3-

   • NZ3

     Telephone Microphone -R38- in the Front Roof Module -WX3-

   • Vehicles with China equipment and NZ4
5. Emergency Call Module Speaker -R335- under the Glove Compartment On the A/C Unit
6. Roof Antenna -R216-
   • GPS Antenna -R50-, NZ2/NZ4
   • GPS Antenna 2 -R268-, NZ3
   • Emergency Call Module Antenna -R263-

• NZ2 - eCall
• NZ3 - ERA Glonass
• NZ4 - private Emergency Call

Troubleshooting

Fault Finding is performed using the "Guided Fault Finding"  on the Vehicle Diagnostic Tester.

When there are concerns about the function, it necessary to be familiar with the Mobile Online Services functions.

For additional information. Refer to the Owner's Manual and the appropriate Wiring Diagram.
