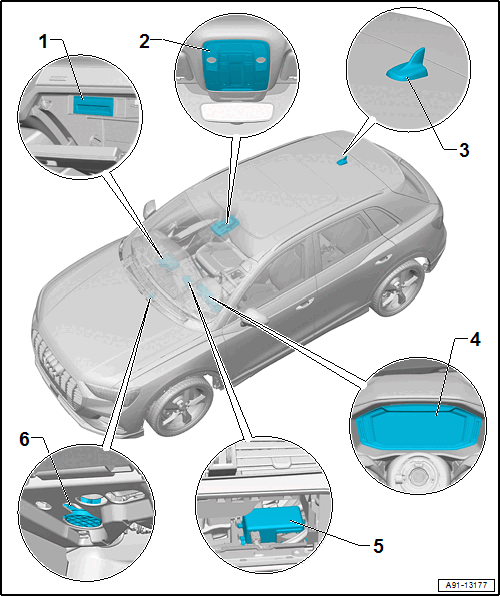

Component Location Overview - Mobile Online Services, NZ2/NZ3, Through My 2019

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. Front Roof Module -WX3-
   • Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
   • Telephone Microphone -R38-, NZ2
   • Emergency Call Module Microphone -R321-, NZ3
   • Overview. Refer to OVERVIEW - MICROPHONE UNIT, MIB 2+, THROUGH MY 2019 .
   • Removing and Installing. Refer to FRONT MICROPHONE, REMOVING AND INSTALLING .
3. Roof Antenna -R216-
   • GPS Antenna 2 -R268-
   • Emergency Call Module Antenna -R263-
   • Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
4. Instrument Cluster with Instrument Cluster Control Module - J285-
   • In the instrument panel
   • Removing and installing. Refer to INSTRUMENT CLUSTER WITH INSTRUMENT CLUSTER CONTROL MODULE -J285-, REMOVING AND INSTALLING .
5. Control Module for Emergency Call Module and Communication Unit -J949-
   • Behind the A/C controls
   • Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .

     Telematics Emergency Battery -A16-

   • Installed in the Control Module for Emergency Call Module and Communication Unit -J949-
   • Removing and Installing. Refer to Telematics Emergency Battery -A16-, REMOVING AND INSTALLING .
6. Emergency Call Module Speaker -R335-
   • Under the glove compartment on the A/C unit
   • Removing and installing, NZ2. Refer to Emergency Call Module Speaker -R335-, EXCLUDING RUSSIA (NZ2/NZ4) .
   • Removing and installing, NZ3. Refer to the appropriate Service Information .
