Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .

-- Draw sketches or take pictures of the wire routing in the steering wheel. This will ensure the original wire routing when installing.

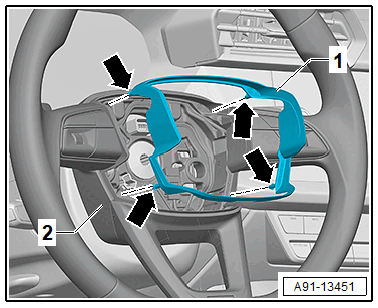

-- Remove the catches -arrows- on the steering wheel trim -1- from the catches in the steering wheel -2-.

GWWA91-13451Courtesy of AUDI OF AMERICA, LLC

-- Release the multifunction button -1- with the Trim Removal Wedge: 3409  next to the catch in direction of -arrow B-.

GWWA91-12474Courtesy of AUDI OF AMERICA, LLC

-- Pry out the multifunction button -1- on the other side in direction of -arrow A- using the Trim Removal Wedge: 3409  .

-- Release and disconnect the connectors on the multifunction button.
