Overview - MULTIFUNCTION Steering Wheel

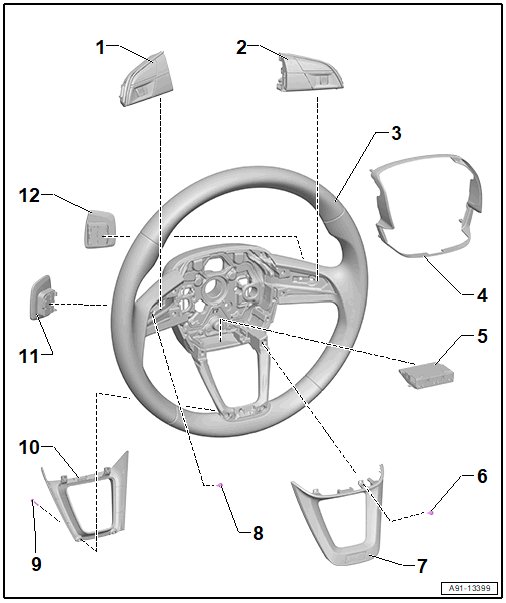

Fig 1: Exploded View Of Multifunction Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

Left Multifunction Buttons on Steering Wheel -E440-
- Removing and Installing. Refer to Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING .
Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING .
Multifunction Steering Wheel
Steering Wheel Trim
Steering Wheel Touch Recognition Control Module - J1158-
- Removing and Installing. Refer to Steering Wheel Touch Recognition Control Module -J1158-, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Trim
Bolt
- 1 Nm
- Quantity: 1 on each side
Bolt
- 2 Nm
- Quantity: 2
Trim
Tiptronic Downshift Button -E480-
- Removing and Installing. Refer to STEERING WHEEL TIPTRONIC SWITCH, REMOVING AND INSTALLING .
Tiptronic Upshift Button -E479-
- Removing and Installing. Refer to STEERING WHEEL TIPTRONIC SWITCH, REMOVING AND INSTALLING .
