Vehicle Interior Communication Antenna 2 -R365-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Depending on vehicle equipment, remove the rear center console trim, the rear center console storage compartment, or the rear center console vent. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Disconnect the connector.

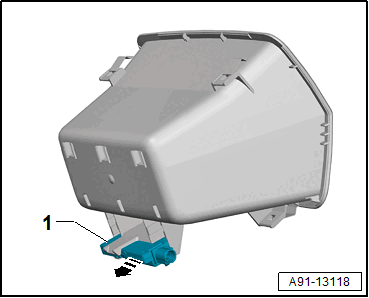

-- On the rear center console storage compartment, press the catch and remove the Vehicle Interior Communication Antenna 2 -R365- -1- in the direction of -the arrow-.

GWWA91-13118Courtesy of AUDI OF AMERICA, LLC
