Removing and Installing the Instrument Panel Antennas

Removing the Instrument Panel Antennas

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

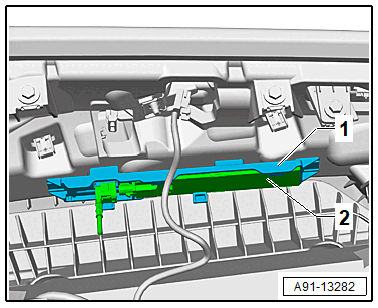

-- Unclip the LTE Antenna 2 -R306- -2- out of the retainer -1-.

-- Release and disconnect the connector.

-- Remove the LTE Antenna 2 -R306-.

Installing the Instrument Panel Antenna

Install in reverse order of removal.
