Component Location Overview - Antenna Systems, MIB 3

Courtesy of AUDI OF AMERICA, LLC

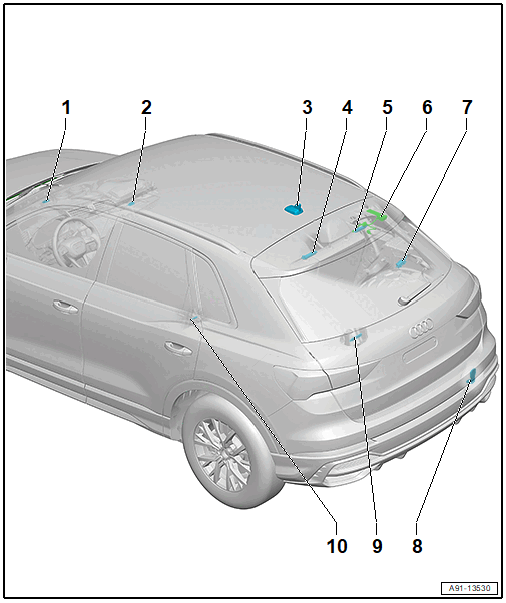

1. Near Field Communication Antenna -R269-
   • ER5
   • Removing and Installing. Refer to Near Field Communication Antenna -R269-, REMOVING AND INSTALLING .
2. Vehicle Interior Communication Antenna -R364-
   • Removing and Installing. Refer to Vehicle Interior Communication Antenna -R364-, REMOVING AND INSTALLING, MIB 3 .
3. Roof Antenna -R216-
   • Depending on vehicle equipment with the following integrated antennas:
     • GPS Antenna -R50-
     • Satellite Tuner Antenna -R172-, ER3 and QV3
     • Auxiliary Heater Antenna -R182-, ER1/ER2/EZ1 and 9M9
     • Emergency Call Module Antenna -R263-, NZ2/NZ3/NZ4
     • LTE Antenna 3 -R330-, 9ZE and NZ0
   • Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
4. Antenna Amplifier -R24-
   • Removing and Installing. Refer to Antenna Amplifier -R24- / Antenna Amplifier 2 - R111-, REMOVING AND INSTALLING .
5. Antenna Amplifier 2 -R111-
   • Removing and Installing. Refer to Antenna Amplifier -R24- / Antenna Amplifier 2 - R111-, REMOVING AND INSTALLING .
6. LTE Antenna 3 -R330-
   • In the spoiler
   • 9ZE and NZ2/NZ3/NZ4
   • Removing and installing. Refer to SPOILER, REMOVING AND INSTALLING .
7. Windshield Antenna Suppression Filter -C18-
   • Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING .
8. Emergency Call Module Antenna 2 -R322-
   • NZ2/NZ3/NZ4
   • Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING .
9. TV Antenna Amplifier 2 -R83-
   • Removing and Installing. Refer to TV Antenna Amplifier 2 -R83-, REMOVING AND INSTALLING .
10. Vehicle Interior Communication Antenna 2 -R365-
    • Removing and Installing. Refer to Vehicle Interior Communication Antenna 2 -R365-, REMOVING AND INSTALLING .
