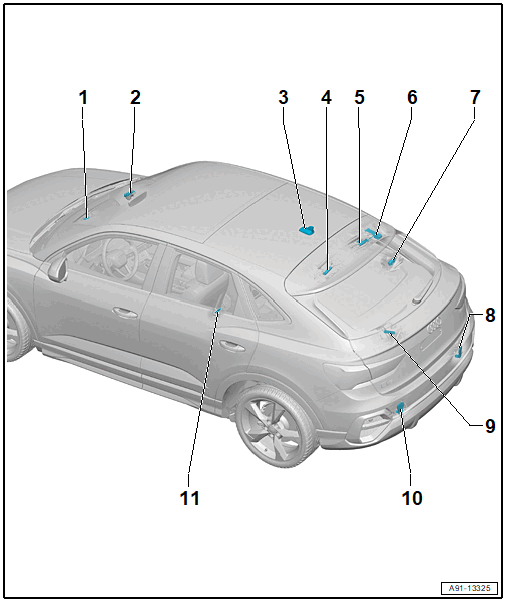

Component Location Overview - Antenna Systems, MIB 2+, Through My 2019
- Near Field Communication Antenna -R269-
- ER5
- Removing and Installing. Refer to Near Field Communication Antenna -R269-, REMOVING AND INSTALLING .
- Traffic Data Antenna -R173-
- ER5
- Removing and Installing. Refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- Depending on vehicle equipment with the following integrated antennas:
- GPS Antenna -R50-, NZ0
- GPS Antenna 2 -R268-, NZ2/NZ3
- Emergency Call Module Antenna -R263-, N/Z2/NZ3
- LTE Antenna 3 -R330-, 9ZE and NZ0
- LTE Antenna 1 -R297-, EL3/EL5 and NZ0 and 9W0/9ZX/9ZV
- Satellite Tuner Antenna -R172-, ER3 and QV3
- Auxiliary Heater Antenna -R182-, ER1/ER2/EZ1 and 9M9
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Depending on vehicle equipment with the following integrated antennas:
- Antenna Amplifier -R24-
- Removing and Installing. Refer to Antenna Amplifier -R24- / Antenna Amplifier 2 - R111-, REMOVING AND INSTALLING .
- Antenna Amplifier 2 -R111-
- Removing and Installing. Refer to Antenna Amplifier -R24- / Antenna Amplifier 2 - R111-, REMOVING AND INSTALLING .
- LTE Antenna 3 -R330-
- In the spoiler
- 9ZE and NZ2/NZ3/NZ4
- Removing and installing. Refer to SPOILER, REMOVING AND INSTALLING
.
LTE Antenna 1 -R297-
- In the spoiler
- EL3/EL5 and NZ0 and 9ZE
- EL3/EL5 and NZ2/NZ3/NZ4 and 9W0/9ZX/9ZV
- Removing and installing. Refer to SPOILER, REMOVING AND INSTALLING .
- Windshield Antenna Suppression Filter -C18-
- Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING .
- LTE Antenna 1 -R297-
- EL3/EL5 and NZ2/NZ3/NZ4 and 9ZE
- Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING .
- TV Antenna Amplifier 2 -R83-
- Removing and Installing. Refer to TV Antenna Amplifier 2 -R83-, REMOVING AND INSTALLING .
- LTE Antenna 2 -R306-
- EL3/EL5
- Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING .
- Vehicle Interior Communication Antenna -R364-
- Removing and Installing. Refer to Vehicle Interior Communication Antenna -R364-, REMOVING AND INSTALLING, MIB 2+ .
