Bumper Antenna, Removing And Installing, Vehicles Without Trailer Hitch: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

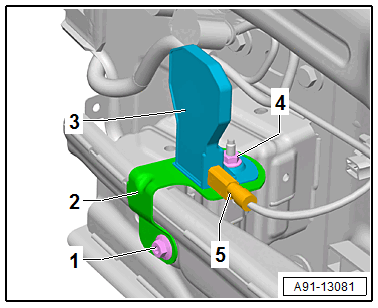

-- Release and disconnect the connector -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -4-.

-- Remove the left bumper antenna -3- from the bracket -2-.

-- If necessary, remove the bolt -1- and the bracket -2-.
