PROTECTIVE HOUSING FOR Battery, 48 V -A6-, REMOVING AND INSTALLING: Removing

-- Remove the Battery, 48 V -A6-. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 .

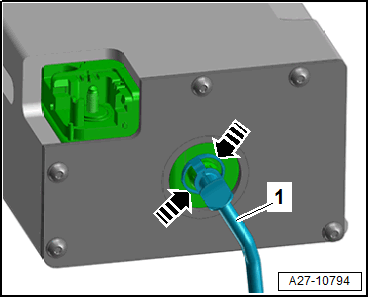

-- Remove the pressure equalization hose -1- by pressing the catches on both sides in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

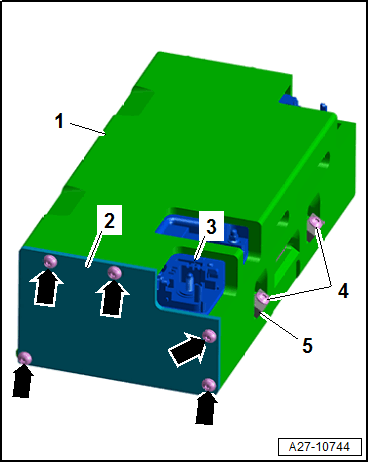

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover plate -2-.

-- Loosen the bolts -4- for the retaining bracket -5- four turns.

-- Remove the Battery, 48 V - A6- -3- from the protective housing -1-.

• Follow the disposal regulations for batteries when disposing of them. Refer to Battery .
