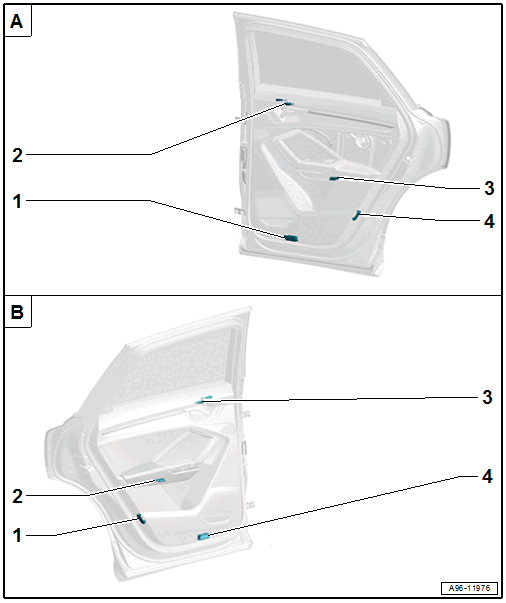

Component Location Overview - Rear Door Lamps

Courtesy of AUDI OF AMERICA, LLC

• A -  Right Rear Door
• 1 -  Rear Entry Lamp
  • LHD, Passenger Side Rear Entry Lamp -W84-
  • RHD, Driver Side Rear Entry Lamp -W83-
  • Removing and Installing. Refer to DRIVER AND PASSENGER SIDE REAR ENTRY LAMP -W83- / -W84-, REMOVING AND INSTALLING .
• 2 -  Rear Interior Door Handle Illumination, Bulb
  • LHD, Passenger Side Rear Interior Door Handle Illumination Bulb -L222-
  • RHD, Driver Side Rear Interior Door Handle Illumination Bulb -L221-
  • Removing and Installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
• 3 -  Rear Door Ambient Illumination, Lamp 2
  • LHD, Passenger Side Rear Door Ambient Illumination Lamp 2 -W100-
  • RHD, Driver Side Rear Door Ambient Illumination Lamp 2 -W99-
  • Removing and Installing. Refer to REAR DOOR AMBIENT ILLUMINATION LAMP 2, REMOVING AND INSTALLING .
• 4 -  Right Rear Door Warning Reflector
• B -  Left Rear Door
• 1 -  Left Rear Door Warning Reflector
• 2 -  Rear Door Ambient Illumination, Lamp 2
  • LHD, Driver Side Rear Door Ambient Illumination Lamp 2 -W99-
  • RHD, Passenger Side Rear Door Ambient Illumination Lamp 2 -W100-
  • Removing and Installing. Refer to REAR DOOR AMBIENT ILLUMINATION LAMP 2, REMOVING AND INSTALLING .
• 3 -  Rear Interior Door Handle Illumination, Bulb
  • LHD, Driver Side Rear Interior Door Handle Illumination Bulb -L221-
  • RHD, Passenger Side Rear Interior Door Handle Illumination Bulb -L222-
  • Removing and Installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
• 4 -  Rear Entry Lamp
  • LHD, Driver Side Rear Entry Lamp -W83-
  • RHD, Passenger Side Rear Entry Lamp -W84-
  • Removing and Installing. Refer to DRIVER AND PASSENGER SIDE REAR ENTRY LAMP -W83- / -W84-, REMOVING AND INSTALLING .
