Headlamp Housing Repair Kit, Installing

TIP:

Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is therefore not necessary.

Procedure

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp with the broken tabs. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the rest of the broken tab on the headlamp housing.

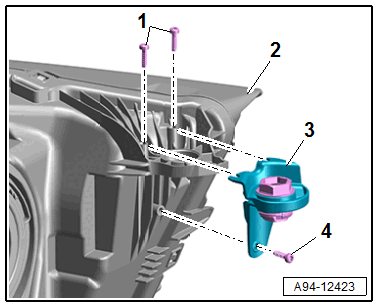

-- Install the repair kit mounting tab -3- on the headlamp housing -2- and secure the tab with the bolts -1 and 4-.

Tightening Specifications

• Refer to OVERVIEW - HEADLAMPS, HEADLAMP REPAIR SET
