Center Console Insert, A5 Cabriolet

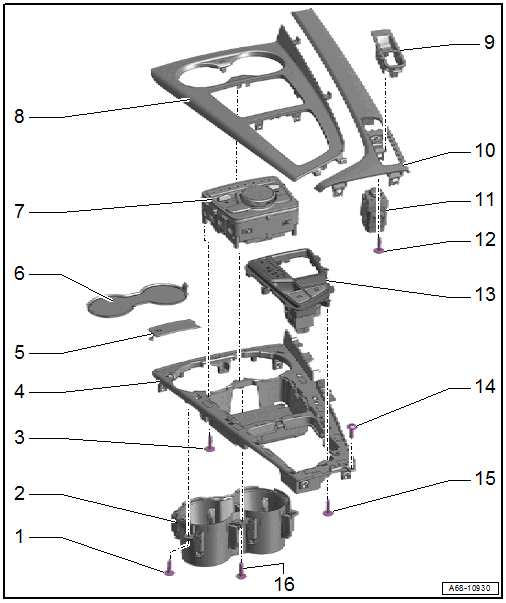

Fig 1: Exploded View Of Center Console Insert, A5 Cabriolet

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 1.4 Nm
- Quantity: 4
Cupholder
- Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - INFOTAINMENT SYSTEM .
- Quantity: 4
Center Console Insert
- Replace damaged or deformed clips
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Press on until it engages audibly
Emergency Release Cover
- Engage in the cupholder and press on it until it engages audibly
Cupholder Trim
Multimedia System Control Head -E380-
- Component Location Overview. Refer to OVERVIEW - INFOTAINMENT SYSTEM .
Center Console Insert Decorative Trim
- Replace damaged or deformed clips
- Removing and Installing. Refer to CENTER CONSOLE INSERT DECORATIVE TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Mount
- For Convertible Top Operation Switch -E137-
- Removing and Installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Engage in the decorative trim and press on it until it engages audibly
Center Console Decorative Trim
- Replace damaged or deformed clips
- Removing and Installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Driver Volume Control -E67-
- Component Location Overview. Refer to OVERVIEW - INFOTAINMENT SYSTEM .
Bolt
- Tightening specification. Refer to OVERVIEW - INFOTAINMENT SYSTEM .
- Quantity: 2
Selector Lever Transmission Range Display -Y5-
- Removing and Installing. Refer to OVERVIEW - CENTER CONSOLE LAMPS .
Bolt
- 1.5 Nm
Bolt
- Tightening specification. Refer to OVERVIEW - CENTER CONSOLE LAMPS .
- Quantity: 4
Bolt
- 1.4 Nm
- Quantity: 2
