Tail Pipe Trim, Removing And Installing, A4 And A5 From Product Improvement: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- If equipped, free up the wiring harness -2-.

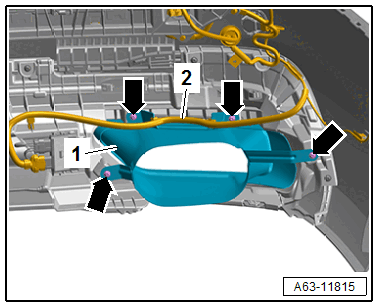

GWWA63-11815Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows-.

-- Remove the tail pipe trim -1- inward.
