Bumper Cover Trim, Removing And Installing, S5 From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.

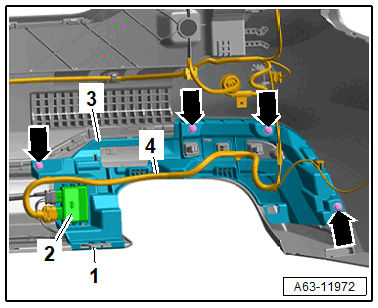

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Equipment version: remove the Power Rear Lid Opening Control Module -J938- -2-. Refer to Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING, VERSION 2 .
-- Free up the wiring harness -4-.
-- Remove the screws -arrows-.
-- Release the catch -1- and remove the mount -3- from the bumper cover.
