Impact Member, Removing And Installing, Vehicles Without Trailer Hitch: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

RS 4 / RS 5:

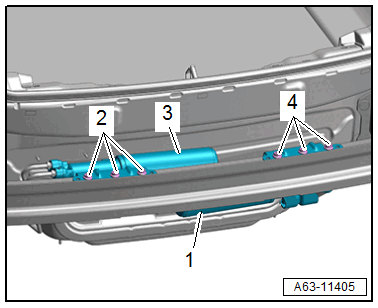

GWWA63-11405Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 4-.

-- Tie up the bracket with the central valve -1 and 3- on the body.

Continuation:

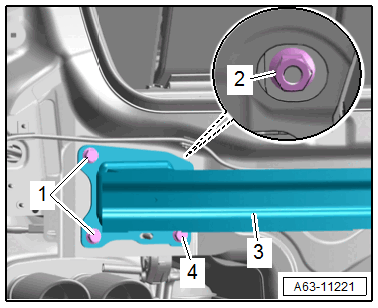

GWWA63-11221Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and bolts -1 and 4-.

-- Remove the impact member -3-.
