Impact Member, Removing And Installing, Vehicles With Trailer Hitch: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

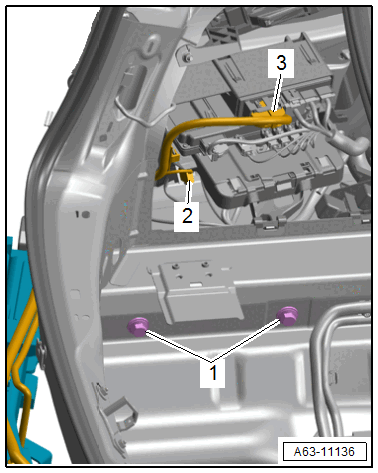

-- Disconnect and free up the connector -3- and ground wire -2-.
-- If equipped, push the spare tire well trim slightly to the side.
-- Remove the bolts -1-.

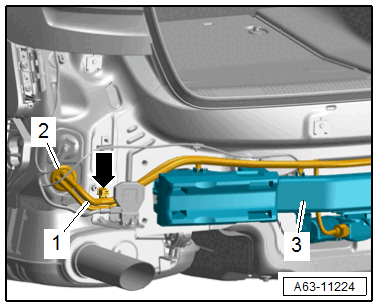

-- Press the grommet -2- outward.
-- Free up the wiring harnesses -1- -arrow- and guide them out of the opening in the body.
-- Remove the impact member -3- with a second technician.
