Impact Guard, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the mount for the tail pipe trim. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .

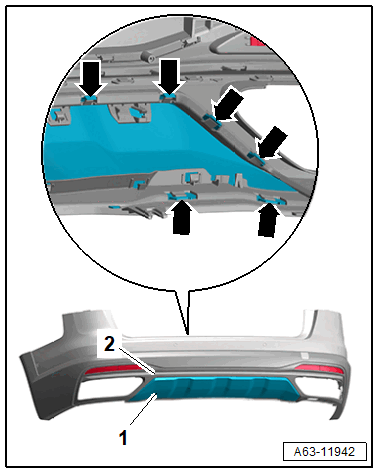

-- Release the retainers -arrows-.
-- Remove the impact guard -1- forward from lower section of the bumper cover -2-.
