End Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- From product improvement: remove the mount for the tail pipe trim. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .
-- Free up the wiring harness.

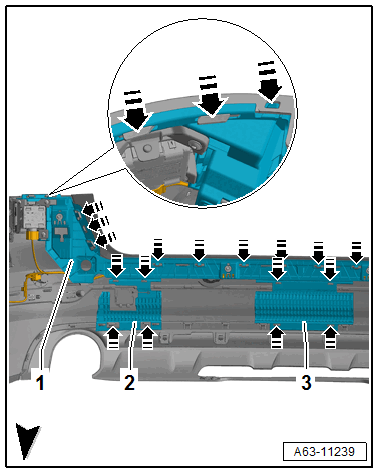

-- Release the retainers -arrows- and remove the end plate -1-.
- The following components must also be removed if the end plate is being replaced:
- Remove the Lane Change Assistance Control Module -J769- and Lane Change Assistance Control Module 2 -J770-. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Remove the bracket for the lane change assistance control module.
