Bumper Cover, Removing And Installing: Removing

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the wheel housing liner -3- to the side.

-- Remove the bolt -2-.

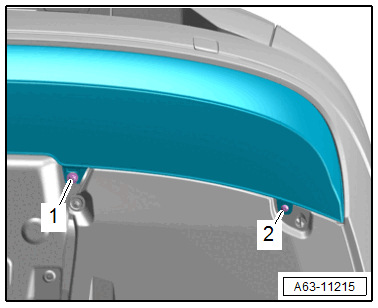

-- Remove the nuts -1- and bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

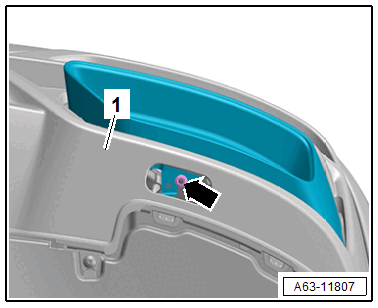

-- A4 and A5 with TDI engine from product improvement: remove through the opening on the bumper cover lower section -1- remove the nut -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tail lamp. Refer to TAIL LAMP, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

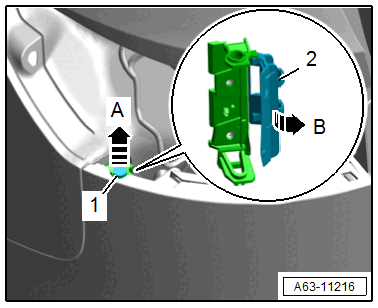

-- Pull the locking mechanism -1- upward in direction of -arrow A-.

-- Open the mount -2- up to the locking mechanism in direction of -arrow B-.

-- Open the luggage compartment side trim panel cover.

Courtesy of AUDI OF AMERICA, LLC

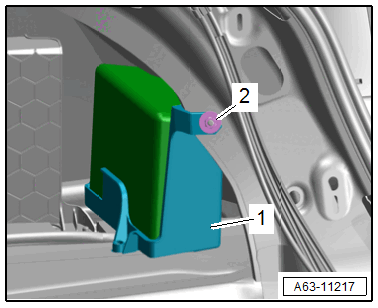

-- Versions with first aid kit mount: remove the nut -2- and remove the mount -1-.

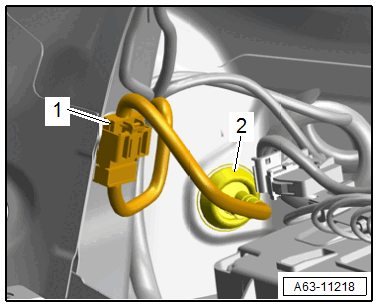

-- Disconnect the connector -1- and free up the wiring harness.

Courtesy of AUDI OF AMERICA, LLC

-- Press the grommet -2- outward.

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

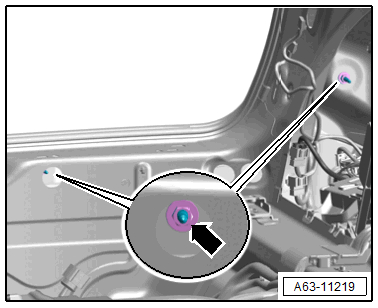

-- Remove the nuts -arrow- using the : T40078  .

Courtesy of AUDI OF AMERICA, LLC

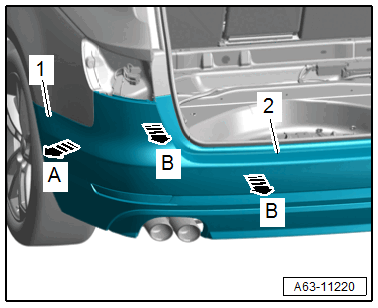

-- Disengage the side bolster -1- outward from the side panel in direction of -arrow A- and remove the bumper cover -2- in direction of -B arrows- at the same time guide out the wiring harness.

Courtesy of AUDI OF AMERICA, LLC

-- Lay the bumper cover on a soft surface.
