Bumper Cover Trim, Removing And Installing, S5 From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the lower end panel. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, S5 FROM PRODUCT IMPROVEMENT .

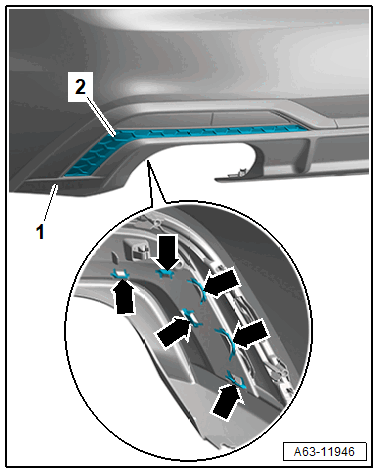

-- Release the catches -arrows- and remove the trim -2- from the bumper cover lower section -1-.
