Bumper Cover Trim Molding, Removing And Installing, RS 5 From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS 5 FROM PRODUCT IMPROVEMENT .

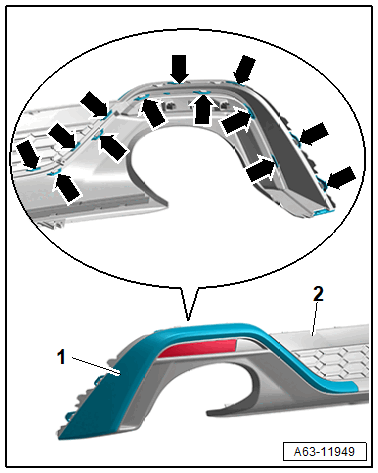

-- Release the catches -arrows- and remove the side trim molding -1- from the lower section of the bumper cover -2-.

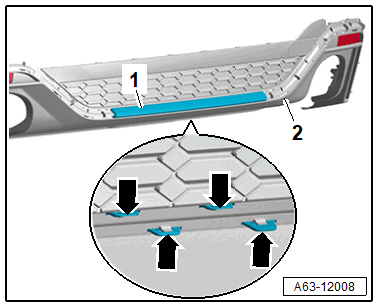

-- Release the catches -arrows- and remove the center trim molding -1- from the lower section of the bumper cover -2-.
