Bumper Cover Trim Molding, Removing And Installing, A5 S Line, S5, From Product Improvement: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- S line: remove the tail pipe trim mount. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .

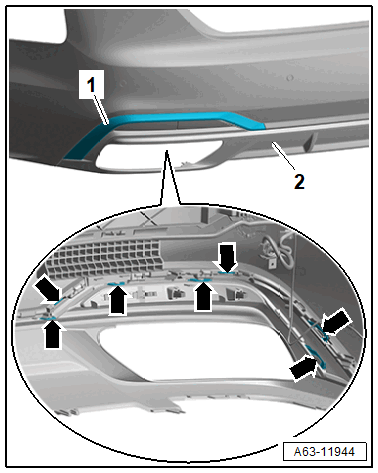

-- Release the catches -arrows- and remove the side trim molding -1- from the lower section of the bumper cover -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT FROM MY 2019, A5 FROM PRODUCT IMPROVEMENT .

Courtesy of AUDI OF AMERICA, LLC

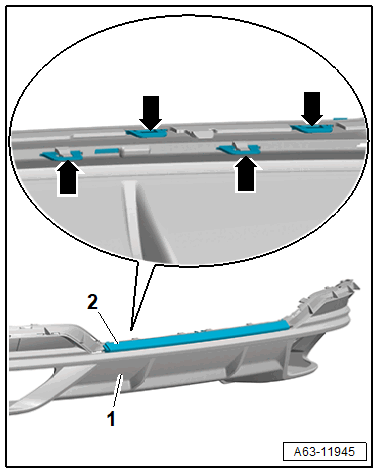

-- Release the catches -arrows- and remove the center trim molding -2- from the lower section of the bumper cover -1-.
