Bumper Cover Trim Molding, Removing And Installing, A5 From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Vehicles with TDI engine: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

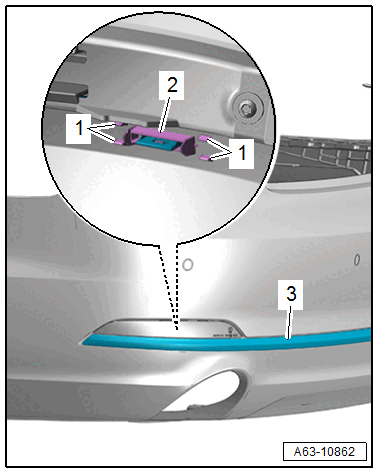

-- Release the catches -1- and remove the trim molding -3- with the clamp -2- from the bumper cover.

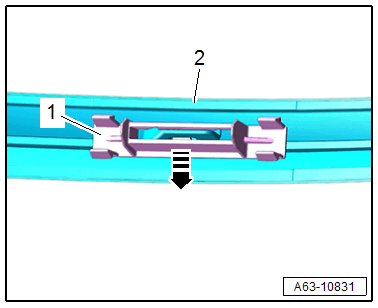

-- Release the catch in direction of -arrow- and remove the clamp -1- from the trim molding -2-.
