Center Bumper Cover Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

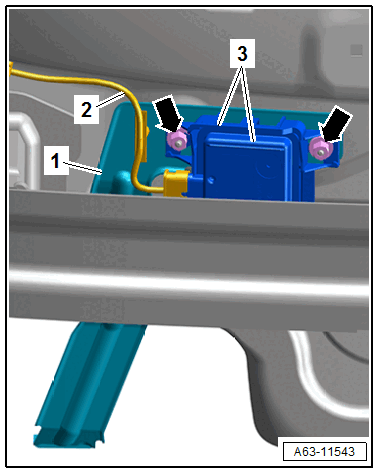

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the nut -arrow-.
-- Equipment version: free up the wiring harness -2-.
-- Remove the bracket with the garage door opener control module -3- and move it to the side with the connector connected.
-- Remove the bumper cover mount -1-.
