Bumper Cover Mount, Removing And Installing, Side: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

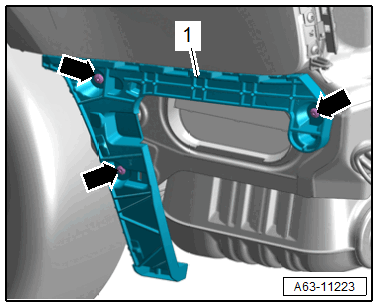

-- Right: free up the drain hose for the fuel filler door unit from the mount -1-.
-- Remove the screws -arrows-.
-- Remove the side mount.
