Bumper Cover Lower Section, Removing And Installing, RS 5 From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

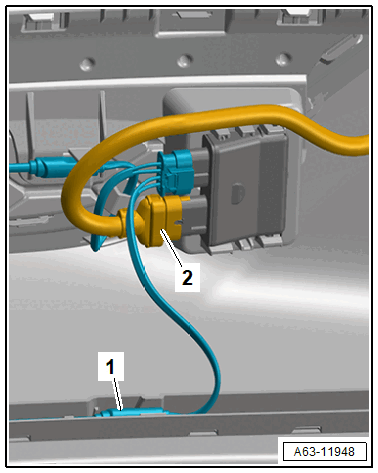

-- If equipped, disconnect the connector -2- and free up the wiring harness.
-- Free up the Power Rear Lid Opening Sensor -G750- -1-.

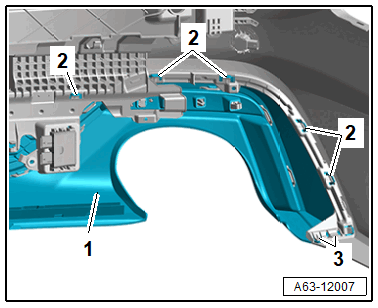

-- Release the catches -2 and 3- and remove the lower section -1- from the bumper cover.
