Bumper Cover Lower Section, Removing And Installing, A5 From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- S line: remove the tail pipe trim mount. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A5 FROM PRODUCT IMPROVEMENT .

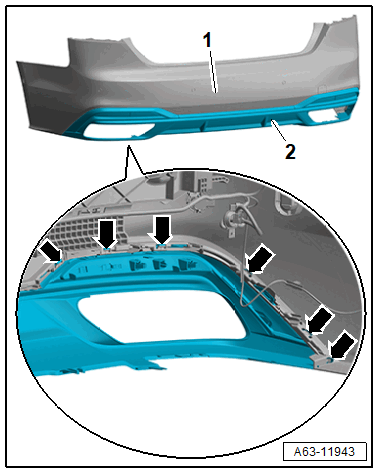

-- Release the retainers -arrows- and remove the lower section -2- from the bumper cover -1-.
