Bumper Cover Lower Section, Removing And Installing, A4 ALLROAD From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the mount for the tail pipe trim. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .

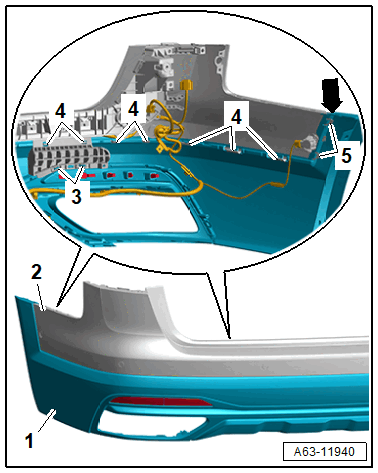

-- Release the upper catch on the bumper cover -arrow-.
-- Release the catches -3, 4 and 5-.
-- Remove the bumper cover lower section -1- from the bumper cover upper section -2-.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the mount for the tail pipe trim. Refer to FRAME FOR TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .

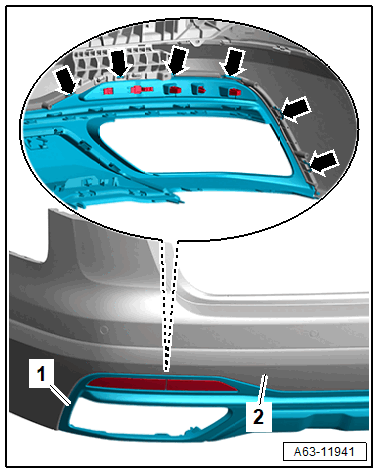

-- Release the retainers -arrows-.
-- Remove the lower section -1- from the bumper cover -2-.
