Side Trim Molding, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the side air intake grille. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, A4 AND A5 BEFORE PRODUCT IMPROVEMENT .
-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A4 ALLROAD BEFORE PRODUCT IMPROVEMENT .
-- Remove the side air duct. Refer to AIR DUCT, REMOVING AND INSTALLING, A4 ALLROAD FROM PRODUCT IMPROVEMENT .

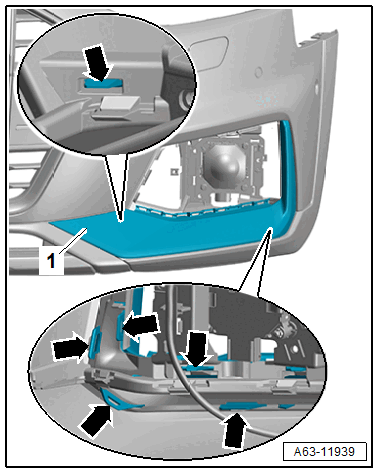

-- Release the retainers -arrows- and remove the trim molding -1-.
