Side Air Intake Grille, Removing And Installing, A5 S Line And S5 From Product Improvement: Removing

WARNING: This page is about a different variant/trim than selected.

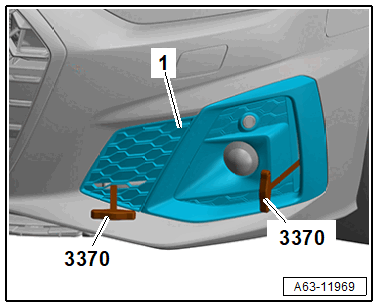

-- Insert the : 3370  into the openings as shown.

GWWA63-11969Courtesy of AUDI OF AMERICA, LLC

-- Remove the air intake grille -1- from the bumper cover.
