Side Air Intake Grille Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- If equipped, free up the wiring harness.

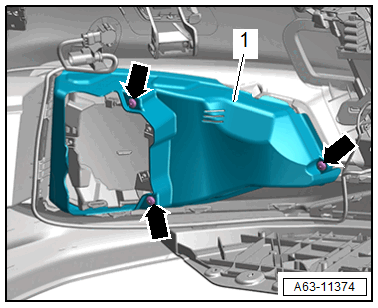

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air intake grill side trim -1-.
