Overview - Bumper Cover, RS 4, RS5 Before Product Improvement

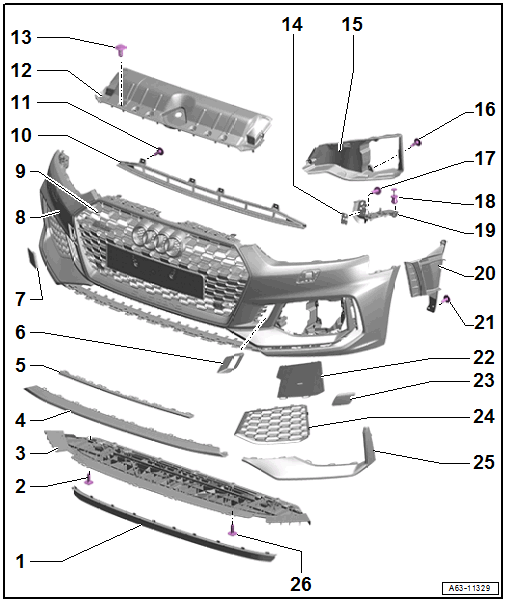

Fig 1: Exploded View Of Bumper Cover, RS4 & RS5

Courtesy of AUDI OF AMERICA, LLC

1. Front Spoiler
   • Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, RS 4 AND A5 .
2. Bolt
   • 5 Nm
   • Quantity: 11
3. End Panel
   • The bumper cover
   • Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING, RS 4 AND RS 5 .
4. Spoiler Lower Section
   • Center
   • Removing and Installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, CENTER, RS 4 AND RS 5 BEFORE PRODUCT IMPROVEMENT .
5. Cover Strip
   • Removing and Installing. Refer to COVER STRIP, REMOVING AND INSTALLING .
6. Air Duct Trim
   • Removing and Installing. Refer to AIR DUCT TRIM, REMOVING AND INSTALLING, RS 4 / RS 5 BEFORE PRODUCT IMPROVEMENT .
7. Cover
   • For the towing eye
8. Bumper Cover
   • Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
9. Radiator Grille
   • Overview. Refer to OVERVIEW - RADIATOR GRILLE, RS 4 AND RS5 BEFORE PRODUCT IMPROVEMENT .
10. Air Intake Grille
    • Center
    • Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A5, RS 4 AND RS 5, BEFORE PRODUCT IMPROVEMENT .
11. Bolt
    • 2 Nm
    • Quantity: 4
12. Lock Carrier Cover
    • Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
13. Expanding Clip
    • Quantity: 6
14. Thread Mount
    • For the bolt
15. Trim
    • For the side air intake grille
    • Removing and Installing. Refer to SIDE AIR INTAKE GRILLE TRIM, REMOVING AND INSTALLING .
16. Bolt
    • 2 Nm
    • Quantity: 3
17. Bolt
    • 4 Nm
18. Expanding Rivet
19. Mount
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
20. Air Duct
    • Side
    • Removing and Installing. Refer to AIR GUIDE, REMOVING AND INSTALLING, A5, RS 4 AND RS 5 .
21. Bolt
    • 2 Nm
    • Quantity: 2
22. Trim
    • For the side air intake grille
    • Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, A4, S LINE, A5 S LINE, RS 4, AND RS 5 BEFORE PRODUCT IMPROVEMENT .
23. Washer Nozzle Cover
    • For the headlamp washer system
    • Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
24. Air Intake Grille
    • Side
    • Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, A4, S LINE, A5 S LINE, RS 4, AND RS 5 BEFORE PRODUCT IMPROVEMENT .
25. Spoiler Lower Section
    • Side
    • Removing and Installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, SIDE .
26. Bolt
    • 2 Nm
    • Quantity: 6
