Overview - Bumper Cover, RS 4 From Product Improvement

WARNING: This page is about a different variant/trim than selected.

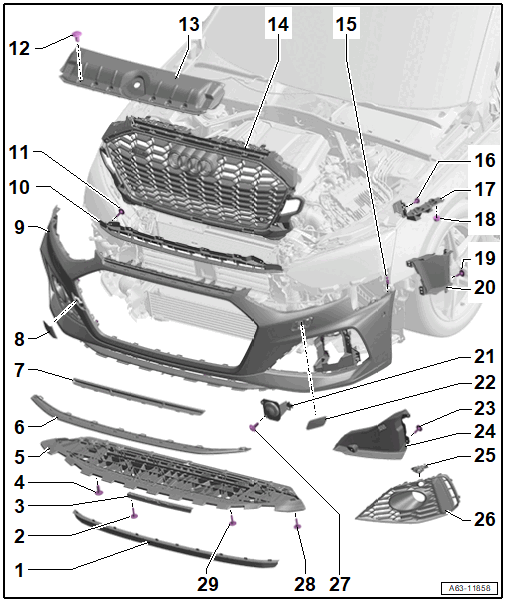

Fig 1: Exploded View Of Front Bumper Cover (RS 4 From Product Improvement)

Courtesy of AUDI OF AMERICA, LLC

Front Spoiler
- Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, RS 4 AND A5 .
Bolt
- 2 Nm
- Quantity: 4
Spoiler
Bolt
- 2 Nm
- Quantity: 4
End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING, RS 4 AND RS 5 .
Spoiler Lower Section
- Removing and Installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, CENTER, RS 4 AND RS 5 FROM PRODUCT IMPROVEMENT .
Grille Trim
- Removing and Installing. Refer to the appropriate Service Information .
Cover
- For the towing eye
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS 4 AND RS 5, FROM PRODUCT IMPROVEMENT .
Bolt
- 2 Nm
- Quantity: 6
Expanding Clip
- Quantity: 6
Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE, RS 4 AND RS5 BEFORE PRODUCT IMPROVEMENT .
Expanding Rivet
Bolt
- 4 Nm
Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Nut
- 4 Nm
- Quantity: 2
Bolt
- 2 Nm
- Quantity: 4
Air Duct
- Side
- Removing and Installing. Refer to AIR GUIDE, REMOVING AND INSTALLING, A5, RS 4 AND RS 5 .
Trim
- Only for equipment versions without Control Module for Adaptive Cruise Control -J428-
- Clipped in the bumper cover.
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 3
Trim
- For the side air intake grille
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE TRIM, REMOVING AND INSTALLING .
Mount
- For the parking aid sensor
- Removing and Installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS 4 AND RS 5, FROM PRODUCT IMPROVEMENT .
Bolt
- 2 Nm
- Quantity: 3
Bolt
- 2 Nm
- Quantity: 2
Bolt
- 5 Nm
- Quantity: 4
