Overview - Bumper Cover, A5 S Line Before Product Improvement

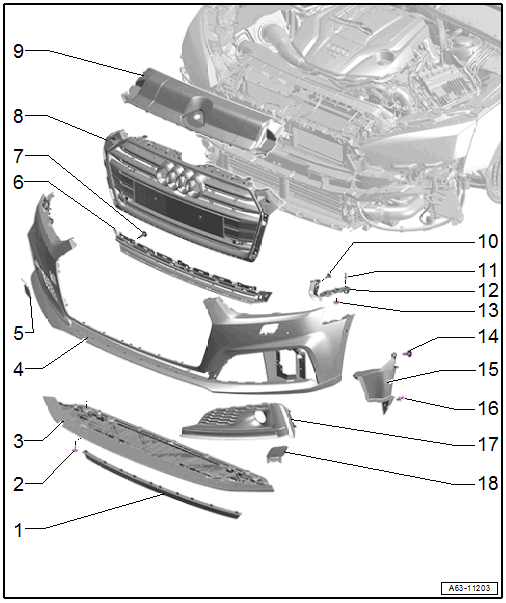

Fig 1: Exploded View Of Bumper Cover & Grill, A5 S Line, S5

Courtesy of AUDI OF AMERICA, LLC

1. Front Spoiler
   • Only S line/S5
   • Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, RS 4 AND A5 .
2. Bolt
   • Tightening specification OVERVIEW - COVERS AND AIR GUIDES
3. End Panel
   • The bumper cover
   • Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
4. Bumper Cover
   • Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
   • Adjusting. Refer to BUMPER COVER, ADJUSTING .
   • Overview - Rear Reflector. Refer to OVERVIEW - REAR REFLECTOR
5. Towing Eye Cover
6. Air Intake Grille
   • Center
   • Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A5 S LINE AND S5 BEFORE PRODUCT IMPROVEMENT .
7. Bolt
   • 2 Nm
   • Quantity: 4
8. Radiator Grille
   • Overview. Refer to OVERVIEW - RADIATOR GRILLE .
9. Lock Carrier Cover
   • Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
10. Bolt
    • 4 Nm
11. Expanding Rivet
12. Mount
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
13. Nut
    • 4 Nm
    • Quantity: 2
14. Bolt
    • 2 Nm
    • Quantity: 2
15. Air Duct
    • Side
    • Removing and Installing. Refer to AIR ROUTING, REMOVING AND INSTALLING .
16. Expanding Rivet
17. Air Intake Grille
    • Side
    • Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
18. Washer Nozzle Cover
    • For the headlamp washer system
    • Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
