Molded Foam Part, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Vehicles equipped with pedestrian protection:
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

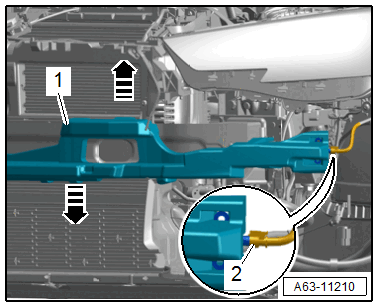

-- Disconnect the connector -2- by removing the connector lock and pressing it down.
Continuation:
-- Release the tabs in direction of -arrows- and remove the molded foam part -1- from the impact member.
