Molded Foam Part Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the front parking aid sensor. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .

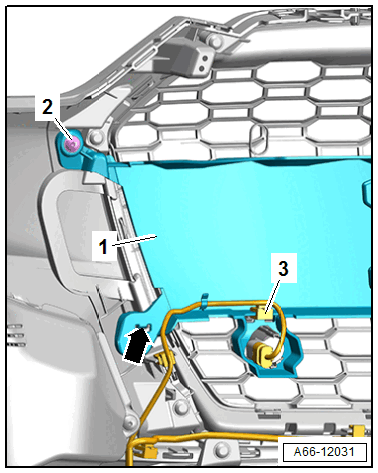

-- Free up the wiring harness -3-.
-- Remove the bolt -2-.
-- RS 4 and RS 5: disconnect the catch -arrow- or in this position remove the bolt and mount -1-.
