Lock Carrier Cover, Removing And Installing: Removing

-- Remove the hook release lever. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .

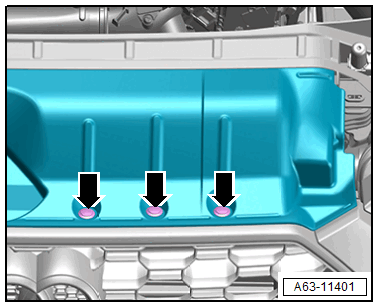

-- If equipped, remove the expanding clips -arrows- using the : T40172C  .

Courtesy of AUDI OF AMERICA, LLC

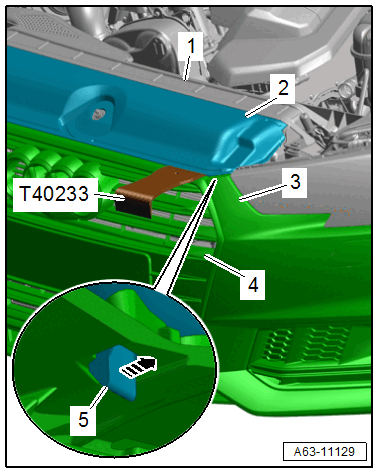

-- Release the lock carrier cover catches -5- on the radiator grille -4- and on the bumper cover -3- using the : T40233  in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover -2- from the groove in the lock carrier -1-.

-- Remove the lock carrier cover.
