Impact Member Mount, Removing
WARNING: This page is about a different variant/trim than selected.

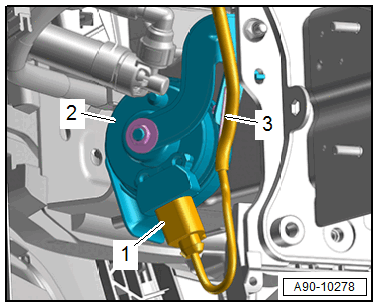

-- Disconnect the connector -1- on the horn -2- and free up the wiring harness -3-.

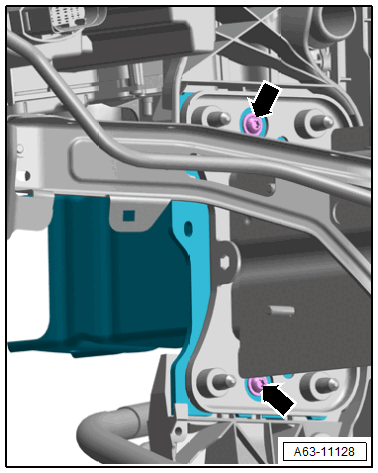

-- Remove the screws -arrows-.

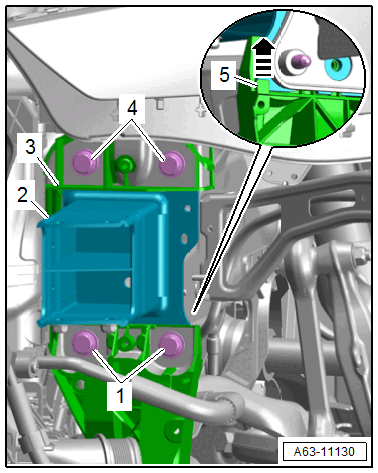

-- Remove the bolts -1 and 4-.
-- Pull the lock carrier -3- slightly forward, push the impact member mount -2- upward and out of the guide -5- in direction of -arrow- and remove it to the side.
Installing
Install in reverse order of removal and note the following:
-- Adjust the spring element. Refer to HEIGHT, ADJUSTING USING SPRING ELEMENT .
