Headlamp Washer System Washer Nozzle Cover, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

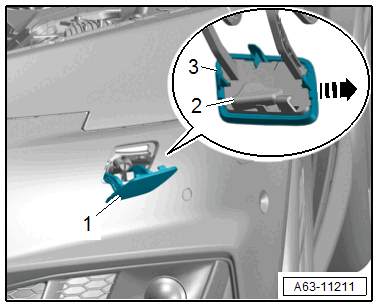

-- Open the washer nozzle cover -1-.

GWWA63-11211Courtesy of AUDI OF AMERICA, LLC

-- Using a screwdriver on the inner side, pry the washer nozzle cover -3- off the mount -2- in direction of -arrow- and disengage it at the opposite side.
