Center Trim Molding, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A5 BASIC/LINES FROM PRODUCT IMPROVEMENT .

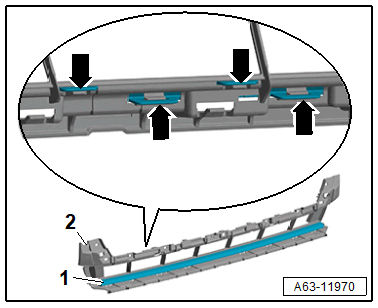

-- Release the retainers -arrows-.
-- Remove the trim molding -1- from the center air intake grille -2-.
