Center Air Intake Grille, Removing And Installing, RS 4 And RS 5, From Product Improvement: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

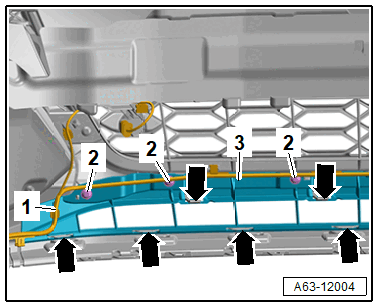

-- Free up the wiring harness -1-.
-- Remove the bolts -2-.
-- Release the retainers -arrows- and remove the air intake grille -3- from the bumper cover.
